4349490000 | Weidmüller
Socket header, 8 pole, pitch 3.5 mm, straight, black, 4349490000
Order No.: 53P2921
EAN: 4032248987788
MPN:
4349490000
BLL 3.50/08/180 3.2SN BK TU
Unit Price (€ / pc.)
9.1154 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
9.12 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1154 €
10 pcs.
8.4728 €
50 pcs.
7.7112 €
*incl. VAT plus shipping costs
Subject to prior sale

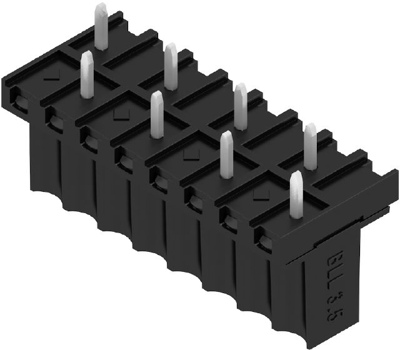

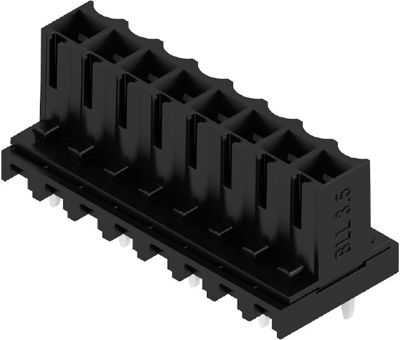

Female connector, 4349490000, Weidmüller
Printed circuit board connector, female connector, side closed, THT solder termination, 3.50 mm, pole count: 8, 180°, 3.2 mm, tin plated, black, tube.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15.1 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | PCB connection | |
| Pin number | 8 pole | |
| Version | socket header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
