4309590000 | Weidmüller
Socket header, 6 pole, pitch 3.5 mm, straight, black, 4309590000
Order No.: 53P2879
EAN: 4032248526468
MPN:
4309590000
BLL 3.50/06/180 3.2SN BK TU
Unit Price (€ / pc.)
6.6045 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.60 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6045 €
10 pcs.
6.0809 €
50 pcs.
5.5335 €
100 pcs.
4.9742 €
*incl. VAT plus shipping costs
Subject to prior sale

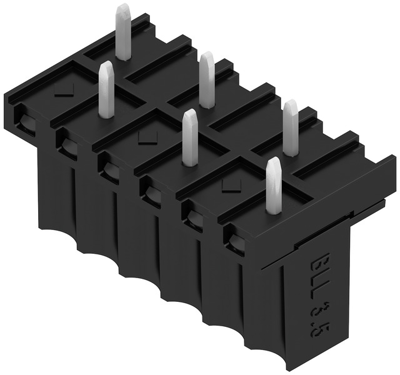

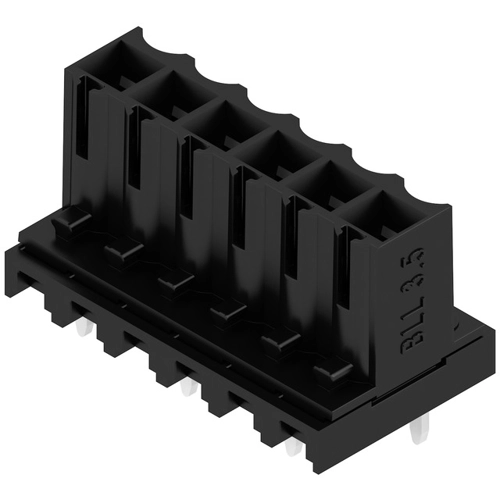

Female connector, 4309590000, Weidmüller
Printed Circuit Board Connector, Female Connector, Side Closed, THT Solder Termination, 3.50 mm, No. of Poles: 6, 180°, 3.2 mm, tinned, black, Tube.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15.1 A | |
| Orientation | straight | |
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Version | socket header | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Connection | PCB connection | |
| Pin number | 6 pole | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
