2989720000 | Weidmüller
Pin header, 10 pole, pitch 5.08 mm, straight, black, 2989720000
Order No.: 50P5833
EAN: 4099986860995
MPN:
2989720000
SLF 5.08/10/180DF SN BK BX
Unit Price (€ / pc.)
8.8179 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
8.82 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8179 €
10 pcs.
8.2229 €
50 pcs.
7.6993 €
100 pcs.
7.2471 €
*incl. VAT plus shipping costs
Subject to prior sale

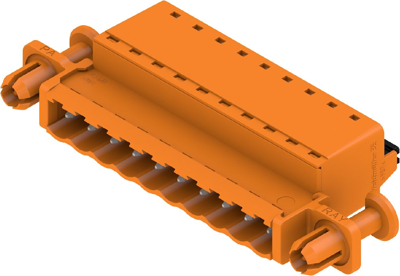

PCB plug-in connector, 2989720000, Weidmüller
Male plug with PUSH IN wire connection and straight outlet direction, when used with BLF 5.08HC as wire-to-wire application for panel feed-through. The male plug provides space for labelling and can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 5.08 mm | |
| Connection | push-in | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 25.9 A | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
