2827840000 | Weidmüller

Pin header, 3 pole, pitch 5.08 mm, straight, orange, 2827840000

Order No.: 50P5831
EAN: 4064675367086
MPN:
2827840000
SLF 5.08/03/180 SN OR BX SO

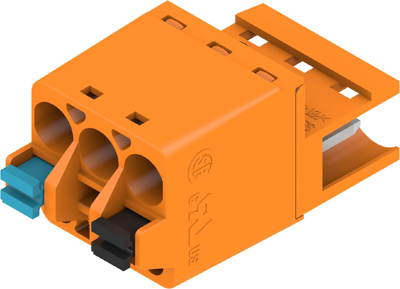

2827840000 Weidmüller PCB Connection Systems Image 1

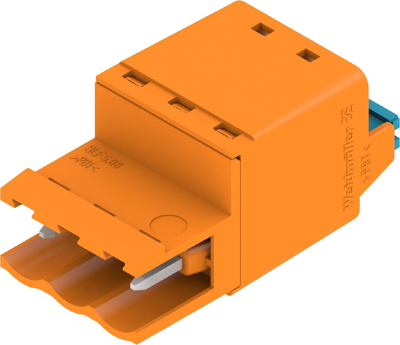

2827840000 Weidmüller PCB Connection Systems Image 2

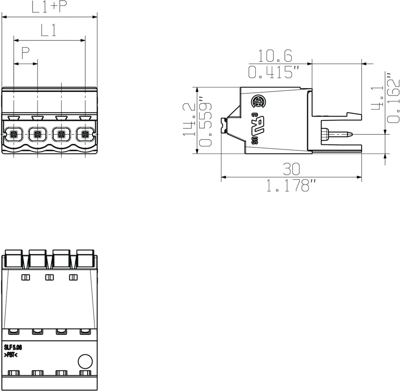

2827840000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.6656 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.67 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6656 €
10 pcs.
2.4633 €
50 pcs.
2.2967 €
100 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 2827840000, Weidmüller

Male plug with PUSH IN wire connection and straight outlet direction, when used with BLF 5.08HC as wire-to-wire application for panel feed-through. The male plug provides space for labelling and can be coded.

Technical specifications
Filter Property Value
Version pin header
contact surface tin-plated
Rated voltage 1000 V
Orientation straight
Number of rows 1
Rated current 25.9 A
Colour orange
Contact type pin
Pin number 3 pole
Grid 5.08 mm
Connection push-in
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
