2759190000 | Weidmüller

Socket header, 3 pole, pitch 5.08 mm, straight, orange, 2759190000

Order No.: 50P4603
EAN: 4064675007289
MPN:
2759190000
BLDF 5.08/03/180 SN OR BX SO

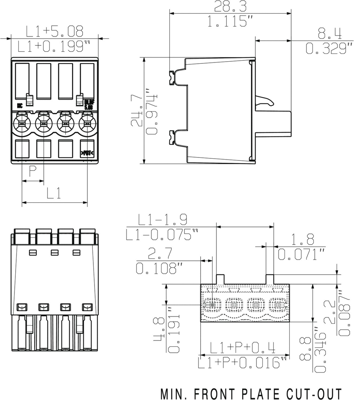

2759190000 Weidmüller PCB Connection Systems Image 1

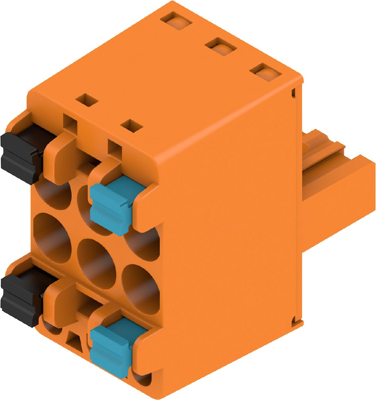

2759190000 Weidmüller PCB Connection Systems Image 2

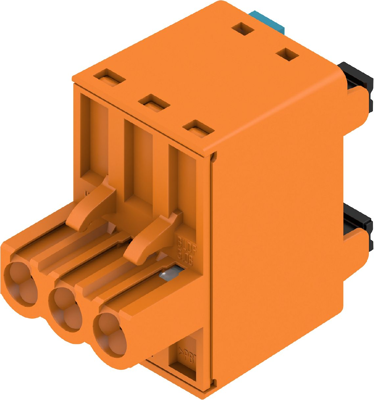

2759190000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.4625 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
4.1650 €
50 pcs.
3.8913 €
100 pcs.
3.6652 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 2759190000, Weidmüller

The powerful daisy-chain solution for high-performance signal bus applications is also suitable for 400 V auxiliary power chains with 18.5A current-carrying capacity. The large clamping capacity (up to 2.5 mm² wire cross-sections) is particularly beneficial for long bus cables or high currents because of the low voltage drop. Four flange variations, including the patented release latch, allow for user-friendly unplugging designs.

Technical specifications
Filter Property Value
Version socket header
contact surface tin-plated
Rated voltage 1000 V
Orientation straight
Number of rows 1
Rated current 20.8 A
Colour orange
Contact type socket
Pin number 3 pole
Grid 5.08 mm
Connection push-in
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
