2635730000 | Weidmüller

Socket header, 3 pole, pitch 5.08 mm, straight, orange, 2635730000

Order No.: 50P5445
EAN: 4050118650662
MPN:
2635730000
BLZP 5.08HC/03/180 SN OR BX TB

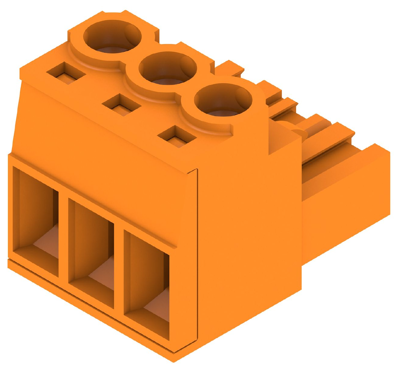

2635730000 Weidmüller PCB Connection Systems Image 1

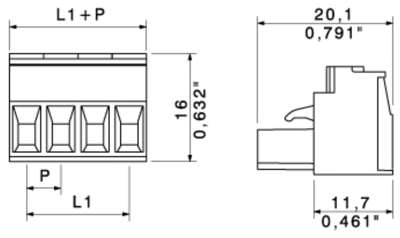

2635730000 Weidmüller PCB Connection Systems Image 2

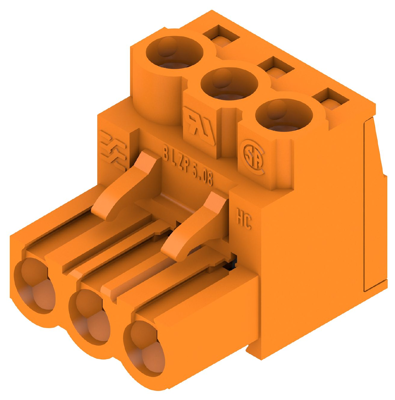

2635730000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.4276 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2491 €
50 pcs.
2.0944 €
100 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 2635730000, Weidmüller

Female plug with clamping-yoke screw system for connecting a wire with a straight (180°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour orange
Connection pull-bar connection
Rated current 23 A
Orientation straight
Rated voltage 1000 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 3 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
