2630180000 | Weidmüller
Pin header, 4 pole, pitch 10.16 mm, angled, black, 2630180000
Order No.: 50P0953
EAN: 4050118633856
MPN:
2630180000
SU 10.16IT/04/90MSF4 3.5AG BK BX
Unit Price (€ / pc.)
8.2943 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.29 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2943 €
10 pcs.
7.7826 €
50 pcs.
7.3185 €
100 pcs.
7.0091 €
*incl. VAT plus shipping costs
Subject to prior sale

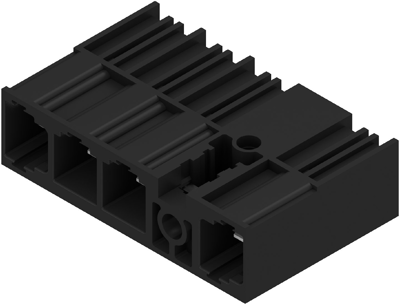

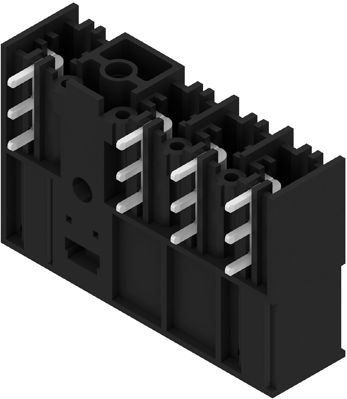

Male header, 2630180000, Weidmüller
Male header with middle solder flange fastening in 10.16 pitch for 400-V IT system according to IEC 61800-5-1. UL approval in compliance with UL840 (600 V) when using leading contact. When used together with the BUZ 10.16 IT, it complies with the expanded requirement for 5.5 mm of touch protection with IT system (400 V relative to earth), according to IEC 61800-5-1. The middle-flange interlock feature decreases the space required by one pitch width when compared to other standard solution.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated current | 78.3 A | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Number of rows | 1 | |
| Rated voltage | 1 kV | |
| Pin number | 4 pole | |
| Version | pin header | |
| Contact type | pin | |
| Grid | 10.16 mm | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
