2628780000 | Weidmüller

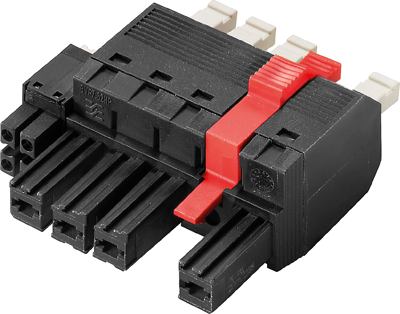

Socket header, 4 pole, pitch 7.62 mm, straight, black, 2628780000
Order No.: 50P1559
EAN: 4050118632798
MPN:
2628780000
BVFL 7.62HP/04/180MF2 BCF/04R SN BK BX
Unit Price (€ / pc.)
10.5196 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
10.52 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5196 €
10 pcs.
9.8532 €
50 pcs.
9.2820 €
100 pcs.
8.8893 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket strip, 2628780000, Weidmüller
180° female plug with energy and signal contacts in PUSH IN wire connection in 7.62 pitch. Fulfils the IEC 61800-5-1 requirement and for the energy contact UL 1059 ClassC 600 V. With adjustable, selflocking pusher for opening the contact point. The selflocking middle flange with automatic interlock reduces the space requirements by one pitch width in comparison with conventional solutions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | black | |
| Rated voltage | 1000 V | |
| Connection | push-in | |
| Pin number | 4 pole | |
| contact surface | tin-plated | |
| Grid | 7.62 mm | |
| Version | socket header | |
| Number of rows | 1 | |
| Contact type | socket | |
| Rated current | 38 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
