2615370000 | Weidmüller

Socket header, 4 pole, pitch 5.08 mm, angled, orange, 2615370000

Order No.: 50P5494
EAN: 4050118619713
MPN:
2615370000
BLZP 5.08HC/04/270F SN GY BX

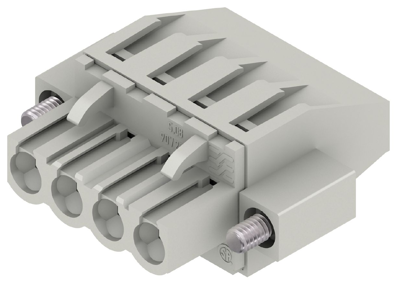

2615370000 Weidmüller PCB Connection Systems Image 1
2615370000 Weidmüller PCB Connection Systems Image 2
2615370000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.7247 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.72 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7247 €
10 pcs.
3.4510 €
50 pcs.
3.2130 €
100 pcs.
3.0107 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 2615370000, Weidmüller

Female plug with clamping-yoke connection for connecting wire with a right-angle (90° or 270°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour orange
Connection pull-bar connection
Rated current 23 A
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 4 pole
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
