2529560000 | Weidmüller

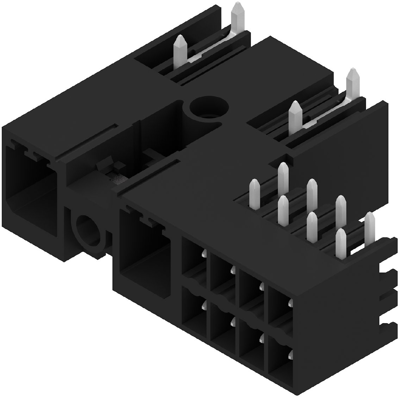

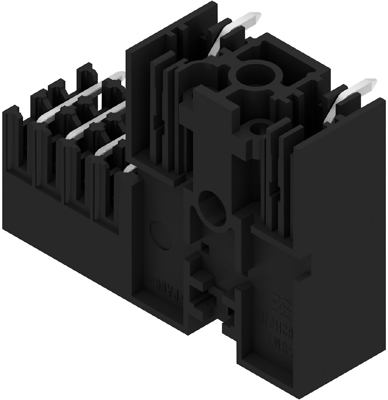

Pin header, 2 pole, pitch 7.62 mm, angled, black, 2529560000
Order No.: 50P1343
EAN: 4050118539837
MPN:
2529560000
SV-SMT 7.62HP/02/270MSF2 SC/8 2.6SN BX
Unit Price (€ / pc.)
6.4260 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4260 €
10 pcs.
5.7834 €
50 pcs.
5.4145 €
100 pcs.
5.1051 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 2529560000, Weidmüller
The OMNIMATE Power Hybrid connector provides developers and users with the perfect three-in-one solution. This hybrid motor connector simultaneously unites power, signals and pluggable EMC shield support. Thus you save space on the PCB, on the outer side of the housing, and in the electrical cabinet. The self-snapping one-handed interlock mechanism requires only one plugging step and thus speeds up installation and maintenance procedures. It is easy to handle and interlocks automatically - even in difficult installation positions. The unique shielding shape and slender 30° wire entry enable a space savings of up to 10 cm between rows.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Colour | black | |
| Rated voltage | 1 kV | |
| Connection | solder connection | |
| Pin number | 2 pole | |
| contact surface | tin-plated | |
| Grid | 7.62 mm | |
| Version | pin header | |
| Number of rows | 1 | |
| Contact type | pin | |
| Rated current | 41 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
