2529090000 | Weidmüller

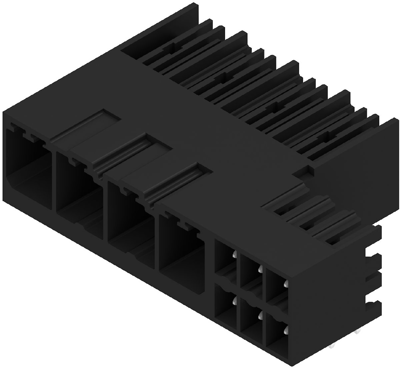

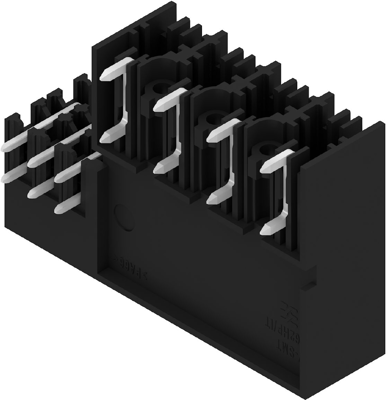

Pin header, 4 pole, pitch 7.62 mm, angled, black, 2529090000
Order No.: 50P1422
EAN: 4050118673159
MPN:
2529090000
SV-SMT 7.62HP/04/90G SC/6 2.6SN BX
Unit Price (€ / pc.)
7.2114 € *
Available in 6 Days: 210 pcs. - if ordered today
Total Price:
7.21 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2114 €
10 pcs.
6.4855 €
50 pcs.
6.0809 €
100 pcs.
5.7239 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 2529090000, Weidmüller
The OMNIMATE Power Hybrid connector provides developers and users with the perfect three-in-one solution. This hybrid motor connector simultaneously unites power, signals and pluggable EMC shield support. Thus you save space on the PCB, on the outer side of the housing, and in the electrical cabinet. The self-snapping one-handed interlock mechanism requires only one plugging step and thus speeds up installation and maintenance procedures. It is easy to handle and interlocks automatically - even in difficult installation positions. The unique shielding shape and slender 30° wire entry enable a space savings of up to 10 cm between rows.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Grid | 7.62 mm | |
| Colour | black | |
| Rated current | 41 A | |
| Version | pin header | |
| Pin number | 4 pole | |
| Rated voltage | 1 kV | |
| Contact type | pin | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
