2458520000 | Weidmüller

Pin header, 8 pole, pitch 3.81 mm, angled, black, 2458520000

Order No.: 53P1913
EAN: 4050118473414
MPN:
2458520000
SCDN-THR 3.81/08/90G 1.5SN BK RL

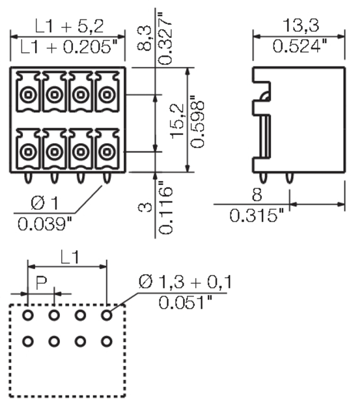

2458520000 Weidmüller PCB Connection Systems Image 1

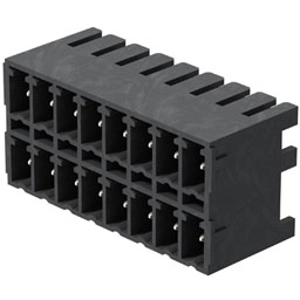

2458520000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.5938 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
3.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.5938 €

Male connector, 2458520000, Weidmüller

Printed Circuit Board Connector, closed side, THT/THR solder termination, 3.81 mm, no. of poles: 8, 90°, 1.5 mm, black, tape (Ø 330 mm); Rs = 10

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 3.81 mm
Orientation angled
Connection PCB connection
Contact type pin
Rated current 17.5 A
Additional parts equipped
Version pin header
Pin number 8 pole
contact surface tin-plated
Number of rows 2
Colour black
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
