2457740000 | Weidmüller
Pin header, 30 pole, pitch 3.5 mm, angled, black, 2457740000
Order No.: 53P1906
EAN: 4050118472790
MPN:
2457740000
SLD 3.50V/30/90F 3.2SN BK BX
Unit Price (€ / pc.)
16.1602 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
16.16 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1602 €
10 pcs.
14.8512 €
50 pcs.
13.5184 €
100 pcs.
12.1737 €
*incl. VAT plus shipping costs
Subject to prior sale

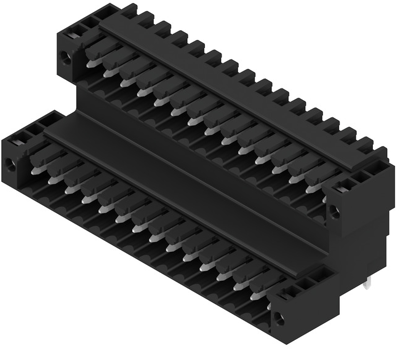

Male connector, 2457740000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 3.50 mm, no. of poles: 30, 90°, 3.2 mm, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10.5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Orientation | angled | |
| Rated voltage | 200 V | |
| Connection | PCB connection | |
| Pin number | 30 pole | |
| Version | pin header | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
