2446080000 | Weidmüller

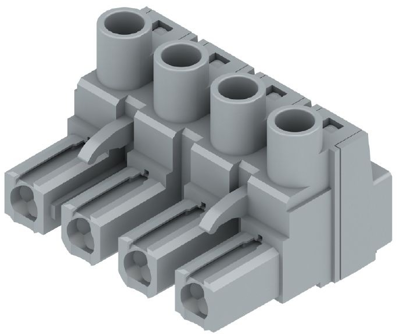

Socket header, 4 pole, pitch 7.62 mm, straight, gray, 2446080000
Order No.: 53P1603
EAN: 4050118459456
MPN:
2446080000
BLZ 7.62HP/04/180 SN TGY BX
PCB plug-in connector, 2446080000, Weidmüller
PCB Connector, 7.62 mm, no. of poles: 4, traffic grey, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 7.62 mm | |
| Connection | screw connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 29 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
