2444120000 | Weidmüller
Pin header, 7 pole, pitch 3.81 mm, straight, orange, 2444120000
Order No.: 53P1552
EAN: 4050118542783
MPN:
2444120000
SCZ 3.81/07/180LR SN OR BX
Unit Price (€ / pc.)
5.6406 € *
Standard delivery time from the manufacturer is: 12 Weeks

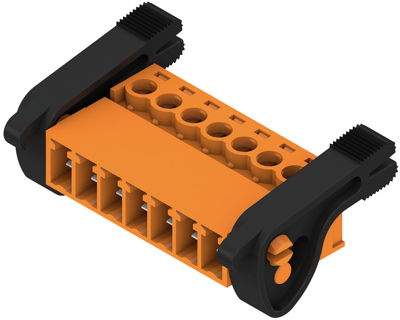

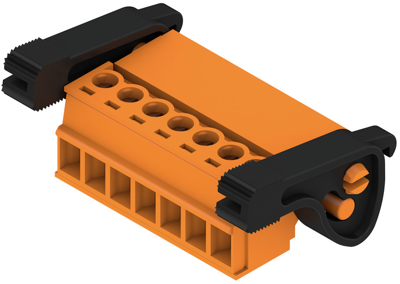

Male connector, 2444120000, Weidmüller
PCB connectors, release latch, 3.81 mm, no. of poles: 7, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Orientation | straight | |
| Connection | clamp connection | |
| Contact type | pin | |
| Rated current | 17.5 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 7 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | orange | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
