2442580000 | Weidmüller

Socket header, 16 pole, pitch 3.81 mm, straight, black, 2442580000

Order No.: 53P1467
EAN: 4050118543315
MPN:
2442580000
BCZ 3.81/16/180LR SN BK BX

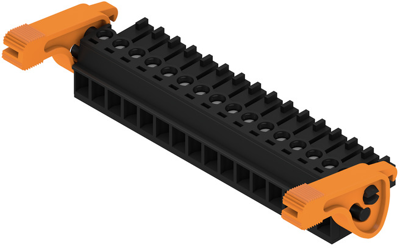

2442580000 Weidmüller PCB Connection Systems Image 1

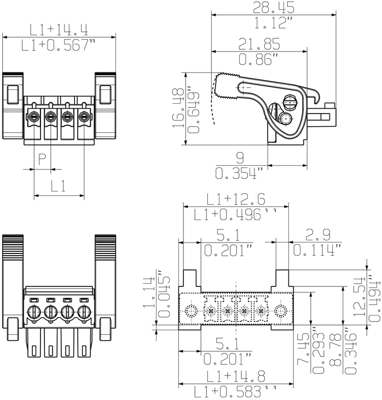

2442580000 Weidmüller PCB Connection Systems Image 2

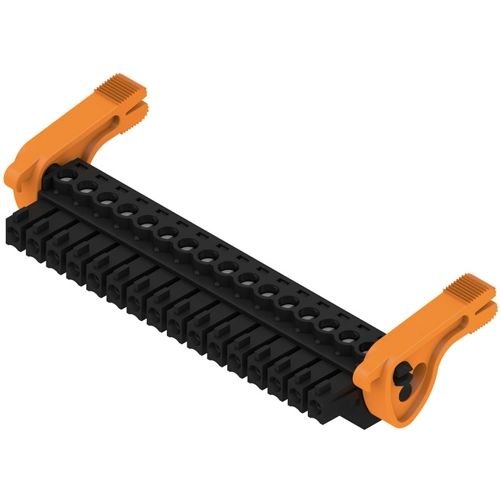

2442580000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.6628 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
9.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.6628 €

Female connector, 2442580000, Weidmüller

PCB connector, release latch, 3.81 mm, no. of poles: 16, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 3.81 mm
Orientation straight
Connection screw connection
Contact type socket
Rated current 17.5 A
Additional parts equipped
Version socket header
Pin number 16 pole
contact surface tin-plated
Number of rows 1
Colour black
Rated voltage 320 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
