2442360000 | Weidmüller
Socket header, 2 pole, pitch 3.81 mm, straight, orange, 2442360000
Order No.: 53P1445
EAN: 4050118543537
MPN:
2442360000
BCZ 3.81/02/180LR SN OR BX
Unit Price (€ / pc.)
2.1777 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2.18 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1777 €
10 pcs.
2.0111 €
50 pcs.
1.8207 €
100 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

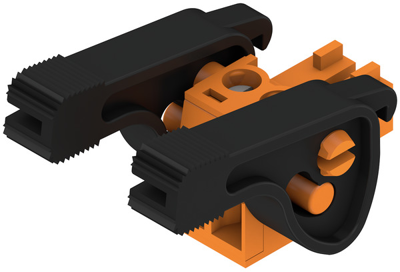

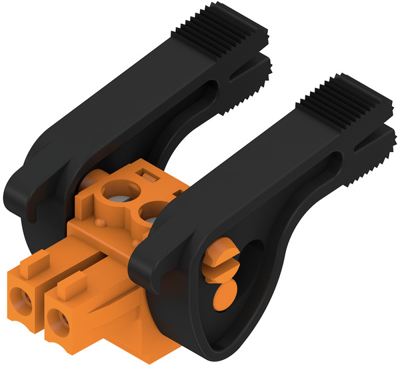

Female connector, 2442360000, Weidmüller
Printed circuit board connector, release latch, 3.81 mm, no. of poles: 2, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated current | 17.5 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 2 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | orange | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
