2442050000 | Weidmüller

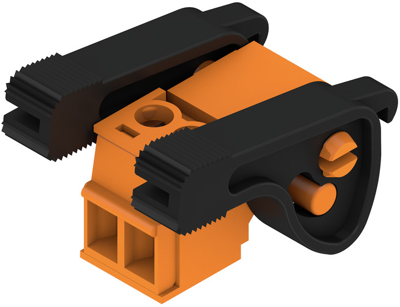

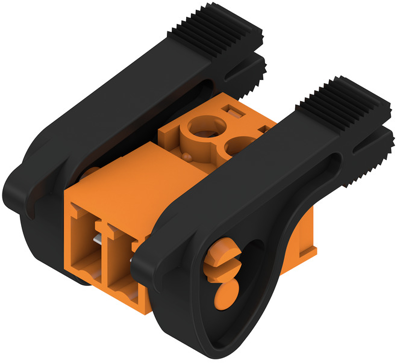

Pin header, 2 pole, pitch 3.81 mm, straight, orange, 2442050000
 Order No.: 53P1423
  EAN: 4050118543742
  MPN:
   2442050000
  SCZ 3.81/02/180LR SN OR BX
 Unit Price (€ / pc.)
   2.6656 €  *
   Standard delivery time from the manufacturer is: 8 Weeks
 Total Price:
  2.67 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 2.6656 €
 10 pcs.
 2.4395 €
 50 pcs.
 2.2134 €
 100 pcs.
 1.9992 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Male connector, 2442050000, Weidmüller
Printed Circuit Board Connector, release latch, 3.81 mm, no. of poles: 2, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Colour | orange | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | clamp connection | |
| Pin number | 2 pole | |
| Version | pin header | |
| Number of rows | 1 |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
