2439990000 | Weidmüller
Pin header, 10 pole, pitch 2.5 mm, straight, black, 2439990000
Order No.: 53P1371
EAN: 4050118455168
MPN:
2439990000
SL 2.50/10/180G 3.2SN BK BX
Unit Price (€ / pc.)
2.0944 € *
Next delivery: 68 pcs. on 2026-01-02
Available in 6 Days: 500 pcs. - if ordered today

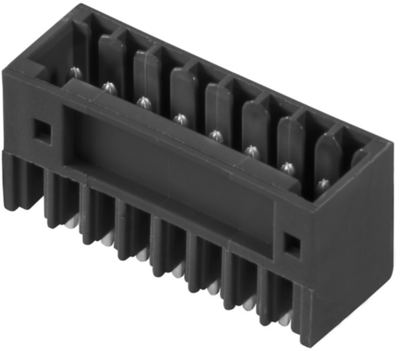

Male connector, 2439990000, Weidmüller
Printed circuit board connector, lateral closed, THT solder termination, 2.50 mm, no. of poles: 10, 180°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 2.5 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 6 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
