2439810000 | Weidmüller

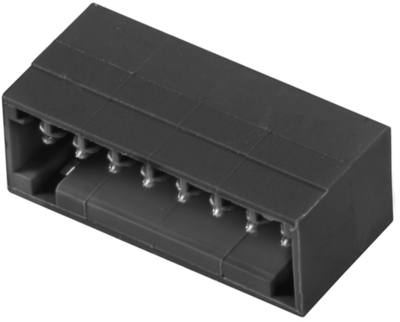

Pin header, 8 pole, pitch 2.5 mm, angled, black, 2439810000
Order No.: 53P1358
EAN: 4050118454987
MPN:
2439810000
SL 2.50/08/90G 3.2SN BK BX
Unit Price (€ / pc.)
1.7017 € *
Available in 6 Days: 625 pcs. - if ordered today
Male connector, 2439810000, Weidmüller
PCB connector, side closed, THT solder termination, 2.50 mm, no. of poles: 8, 90°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 6 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 8 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
