2439800000 | Weidmüller
Pin header, 7 pole, pitch 2.5 mm, angled, black, 2439800000
Order No.: 53P1357
EAN: 4050118454970
MPN:
2439800000
SL 2.50/07/90G 3.2SN BK BX
Unit Price (€ / pc.)
2.0349 € *
Available in 6 Days: 625 pcs. - if ordered today
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0349 €
10 pcs.
1.8683 €
50 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

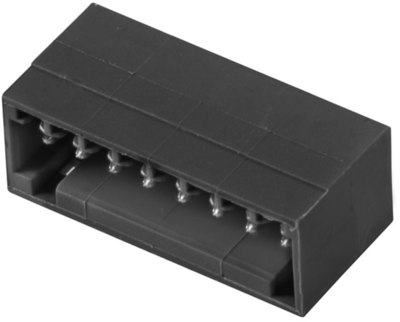

Male connector, 2439800000, Weidmüller
Printed Circuit Board Connector, closed sideways, THT solder termination, 2.50 mm, no. of poles: 7, 90°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 6 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 7 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
