2439720000 | Weidmüller

Socket header, 9 pole, pitch 2.5 mm, straight, black, 2439720000

Order No.: 53P1349
EAN: 4050118454796
MPN:
2439720000
BLF 2.50/09/180 SN BK BX

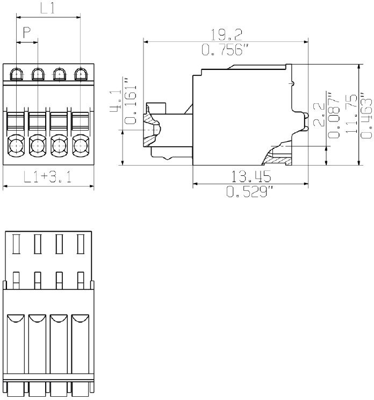

2439720000 Weidmüller PCB Connection Systems Image 1

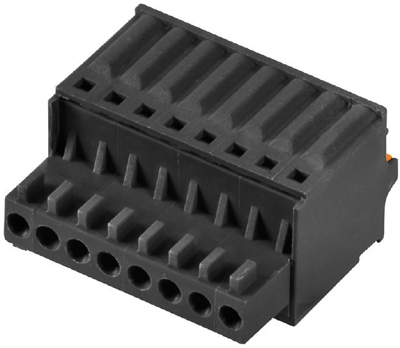

2439720000 Weidmüller PCB Connection Systems Image 2

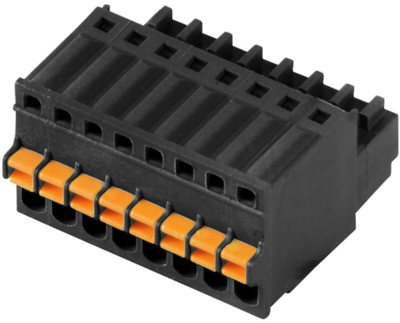

2439720000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.9849 € *
Available: 3 pcs.
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
7.98 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9849 €
10 pcs.
7.3423 €
50 pcs.
6.6759 €
100 pcs.
6.0214 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 2439720000, Weidmüller

Printed circuit board connector, closed side, 2.50 mm, no. of poles: 9, tin-plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Colour black
contact surface tin-plated
Rated current 6 A
Grid 2.5 mm
Pin number 9 pole
Version socket header
Additional parts equipped
Orientation straight
Connection spring connection
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
