2439710000 | Weidmüller

Socket header, 8 pole, pitch 2.5 mm, straight, black, 2439710000

Order No.: 53P1348
EAN: 4050118454789
MPN:
2439710000
BLF 2.50/08/180 SN BK BX

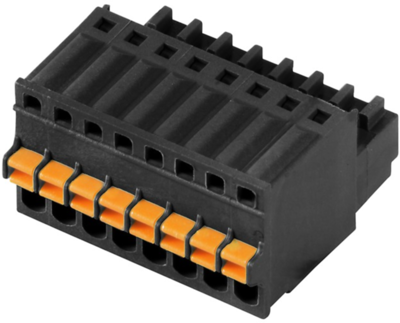

2439710000 Weidmüller PCB Connection Systems Image 1

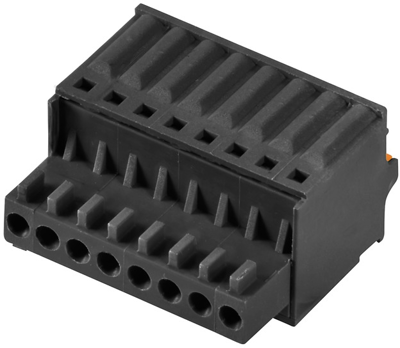

2439710000 Weidmüller PCB Connection Systems Image 2
2439710000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.0218 € *
Available: 59 pcs.
Total Price:
5.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.0218 €

Female connector, 2439710000, Weidmüller

PCB connectors, closed sideways, 2.50 mm, no. of poles: 8, tin-plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 2.5 mm
Orientation straight
Connection spring connection
Contact type socket
Rated current 6 A
Additional parts equipped
Version socket header
Pin number 8 pole
contact surface tin-plated
Number of rows 1
Colour black
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
