2054750000 | Weidmüller

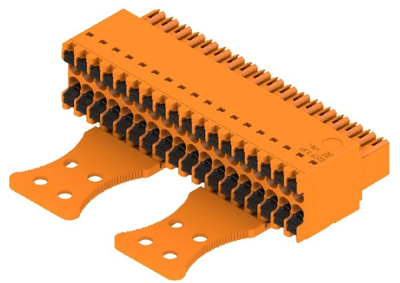

Socket header, 36 pole, pitch 3.5 mm, straight, orange, 2054750000
Order No.: 53P0316
EAN: 4050118412499
MPN:
2054750000
B2CF 3.50/36/180ZE SN OR BX
Unit Price (€ / pc.)
21.6104 € *
Standard delivery time from the manufacturer is: 6 Weeks
Female connector, 2054750000, Weidmüller
PCB connectors, strain relief, release latch, strain relief, 3.50 mm, no. of poles: 36, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 13.4 A | |
| Grid | 3.5 mm | |
| Pin number | 36 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
