2004490000 | Weidmüller
Pin header, 20 pole, pitch 5.08 mm, straight, green, 2004490000
Order No.: 52P9501
EAN: 4050118388961
MPN:
2004490000
BLZP 5.08HC/20/180F SN GN BX
Unit Price (€ / pc.)
11.6858 € *
Standard delivery time from the manufacturer is: On Request

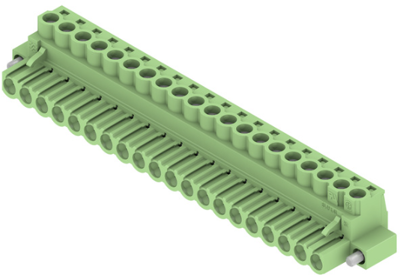

PCB plug-in connector, 2004490000, Weidmüller
Printed circuit board connector, male connector, flange, 5.08 mm, no. of poles: 20, pale green, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Grid | 5.08 mm | |
| Colour | green | |
| contact surface | tin-plated | |
| Version | socket header | |
| Additional parts | equipped | |
| Rated current | 23 A | |
| Number of rows | 1 | |
| Pin number | 20 pole | |
| Orientation | straight | |
| Connection | screw connection | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
