2004470000 | Weidmüller

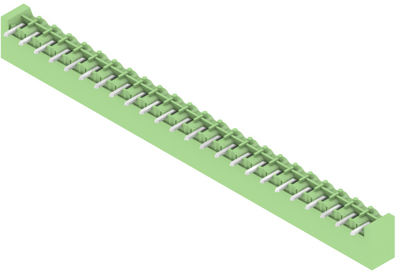

Pin header, 24 pole, pitch 5.08 mm, angled, green, 2004470000
Order No.: 52P9499
EAN: 4050118388855
MPN:
2004470000
SL 5.08HC/24/90G 3.2SN GN BX
Unit Price (€ / pc.)
4.6767 € *
Standard delivery time from the manufacturer is: On Request
PCB plug-in connector, 2004470000, Weidmüller
PCB Connector, Male Connector, Closed Sides, THT Solder Termination, 5.08 mm, No. of Poles: 24, 90°, 3.2 mm, Pale Green, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Pin number | 24 pole | |
| Additional parts | equipped | |
| Colour | green | |
| Version | pin header | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
