1980800000 | Weidmüller

Socket header, 17 pole, pitch 5 mm, angled, orange, 1980800000

Order No.: 52P8793
EAN: 4032248675944
MPN:
1980800000
BLF 5.00HC/17/90F SN OR BX

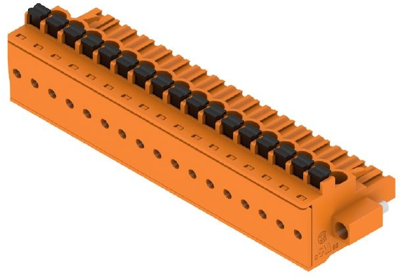

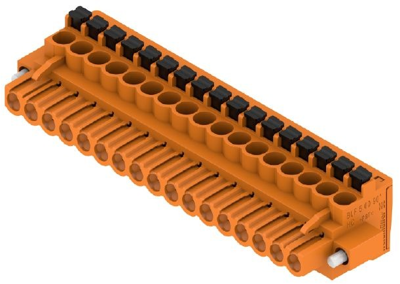

1980800000 Weidmüller PCB Connection Systems Image 1
1980800000 Weidmüller PCB Connection Systems Image 2
1980800000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
10.4244 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
10.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.4244 €

Female connector, 1980800000, Weidmüller

PCB connector, flange, 5.00 mm, no. of poles: 17, tin-plated, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Colour orange
contact surface tin-plated
Rated current 24 A
Grid 5 mm
Pin number 17 pole
Version socket header
Additional parts equipped
Orientation angled
Connection spring connection
Contact type socket
Rated voltage 400 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
