1980720000 | Weidmüller
Socket header, 10 pole, pitch 5 mm, angled, orange, 1980720000
Order No.: 52P8786
EAN: 4032248675876
MPN:
1980720000
BLF 5.00HC/10/90F SN OR BX
Unit Price (€ / pc.)
3.5700 € *
Available in 5 Days: 90 pcs. - if ordered today

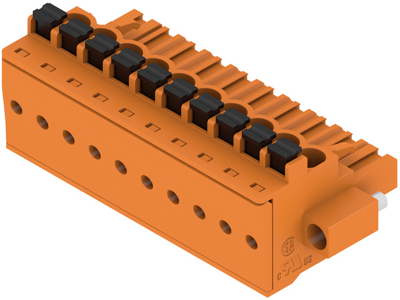

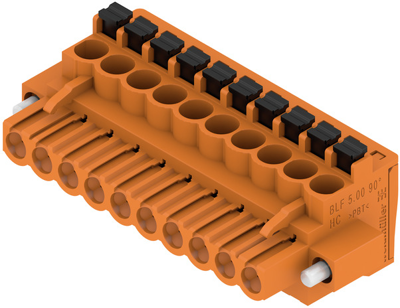

Female connector, 1980720000, Weidmüller
Printed circuit board connector, flange, 5.00 mm, no. of poles: 10, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Pin number | 10 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | socket header | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
