1980490000 | Weidmüller

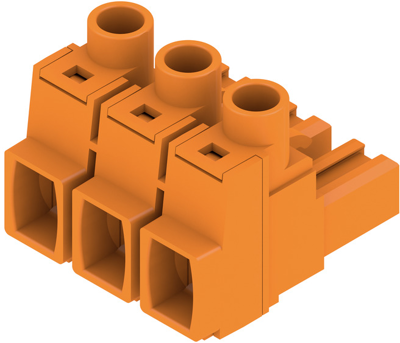

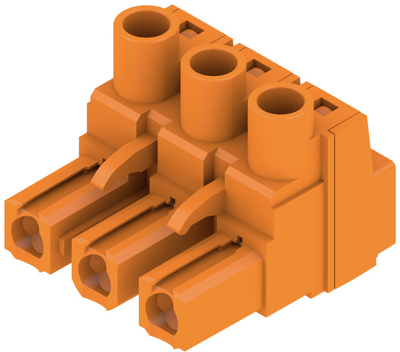

Socket header, 3 pole, pitch 7.62 mm, straight, orange, 1980490000
Order No.: 52P8768
EAN: 4032248675548
MPN:
1980490000
BLZ 7.62HP/03/180 SN OR BX
Unit Price (€ / pc.)
3.0464 € *
Available in 6 Days: 500 pcs. - if ordered today
Female connector, 1980490000, Weidmüller
PCB connectors, 7.62 mm, no. of poles: 3, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Pin number | 3 pole | |
| Rated voltage | 630 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | screw connection | |
| Rated current | 29 A | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
