1979640000 | Weidmüller

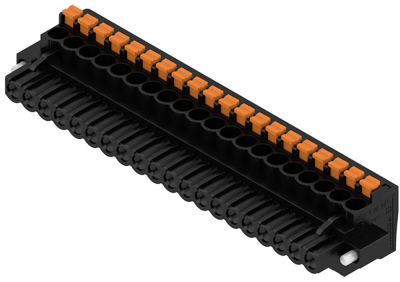

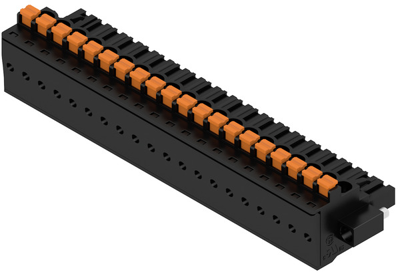

Socket header, 20 pole, pitch 5 mm, angled, black, 1979640000
Order No.: 52P8729
EAN: 4032248674848
MPN:
1979640000
BLF 5.00HC/20/90F SN BK BX
Unit Price (€ / pc.)
16.9337 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
16.93 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9337 €
10 pcs.
15.7556 €
50 pcs.
14.4823 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 1979640000, Weidmüller
Printed circuit board connector, flange, 5.00 mm, no. of poles: 20, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 24 A | |
| Grid | 5 mm | |
| Pin number | 20 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
