1979610000 | Weidmüller

Socket header, 17 pole, pitch 5 mm, angled, black, 1979610000

Order No.: 50P4700
EAN: 4032248674817
MPN:
1979610000
BLF 5.00HC/17/90F SN BK BX

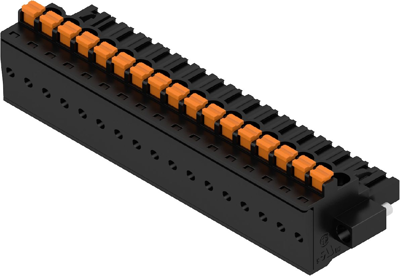

1979610000 Weidmüller PCB Connection Systems Image 1

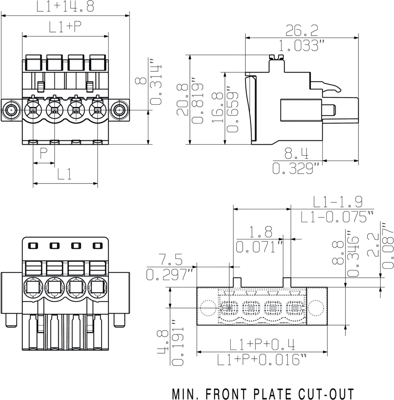

1979610000 Weidmüller PCB Connection Systems Image 2

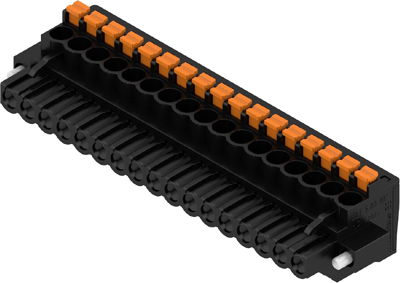

1979610000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
13.1971 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
13.20 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1971 €
10 pcs.
12.3046 €
50 pcs.
11.5192 €
100 pcs.
10.8290 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1979610000, Weidmüller

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 17, 90°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².

Technical specifications
Filter Property Value
Version socket header
contact surface tin-plated
Rated voltage 400 V
Orientation angled
Number of rows 1
Rated current 24 A
Colour black
Contact type socket
Pin number 17 pole
Grid 5 mm
Connection push-in
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
