1979580000 | Weidmüller

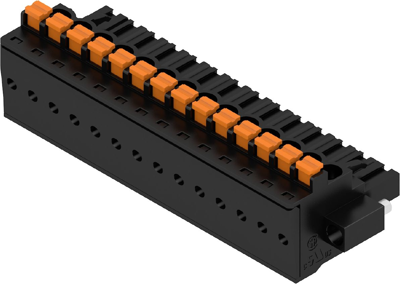

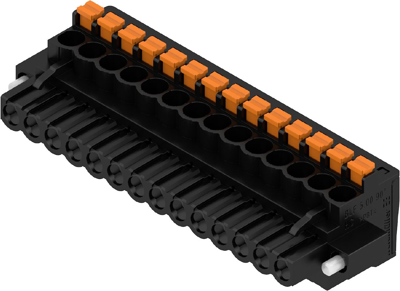

Socket header, 14 pole, pitch 5 mm, angled, black, 1979580000
Order No.: 50P4692
EAN: 4032248674787
MPN:
1979580000
BLF 5.00HC/14/90F SN BK BX
Unit Price (€ / pc.)
10.9361 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
10.94 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9361 €
10 pcs.
10.1983 €
50 pcs.
9.5438 €
100 pcs.
8.9726 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1979580000, Weidmüller
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 14, 90°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².
Technical specifications
Filter | Property | Value |
---|---|---|
Version | socket header | |
contact surface | tin-plated | |
Rated voltage | 400 V | |
Orientation | angled | |
Number of rows | 1 | |
Rated current | 24 A | |
Colour | black | |
Contact type | socket | |
Pin number | 14 pole | |
Grid | 5 mm | |
Connection | push-in |
Download
Logistics
Property | Value |
---|---|
Country of origin | RO |
Customs tariff number | 85366990 |
Compliance
Property | Value |
---|---|
SVHC free | No |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
