1979560000 | Weidmüller

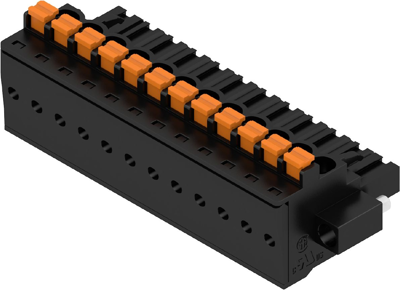

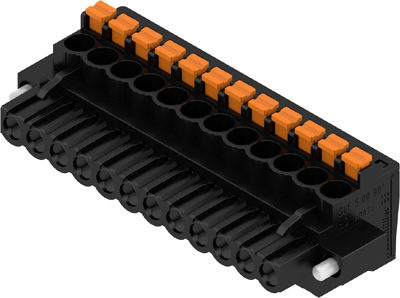

Socket header, 12 pole, pitch 5 mm, angled, black, 1979560000
Order No.: 50P4691
EAN: 4032248674763
MPN:
1979560000
BLF 5.00HC/12/90F SN BK BX
Unit Price (€ / pc.)
9.4367 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
9.44 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4367 €
10 pcs.
8.7941 €
50 pcs.
8.2348 €
100 pcs.
7.7469 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1979560000, Weidmüller
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 12, 90°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².
Technical specifications
Filter | Property | Value |
---|---|---|
Version | socket header | |
contact surface | tin-plated | |
Rated voltage | 400 V | |
Orientation | angled | |
Number of rows | 1 | |
Rated current | 24 A | |
Colour | black | |
Contact type | socket | |
Pin number | 12 pole | |
Grid | 5 mm | |
Connection | push-in |
Download
Logistics
Property | Value |
---|---|
Country of origin | RO |
Customs tariff number | 85366990 |
Compliance
Property | Value |
---|---|
SVHC free | No |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
