1979290000 | Weidmüller

Socket header, 4 pole, pitch 5 mm, angled, black, 1979290000

Order No.: 52P8722
EAN: 4032248674473
MPN:
1979290000
BLF 5.00HC/04/90 SN BK BX
1979290000 Weidmüller PCB Connection Systems Image 1
1979290000 Weidmüller PCB Connection Systems Image 2
1979290000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.4752 €

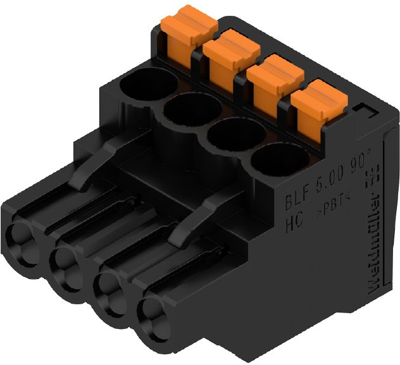

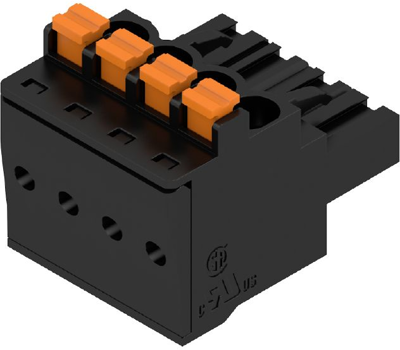

Female connector, 1979290000, Weidmüller

PCB connector, closed side, 5.00 mm, no. of poles: 4, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Connection spring connection
Colour black
Additional parts equipped
Pin number 4 pole
Contact type socket
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Version socket header
Rated current 24 A
Number of rows 1
Grid 5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
