1977760000 | Weidmüller
Pin header, 15 pole, pitch 3.81 mm, angled, black, 1977760000
Order No.: 52P8677
EAN: 4032248685349
MPN:
1977760000
SC-SMT 3.81/15/135G 3.2SN BK BX
Unit Price (€ / pc.)
4.2007 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1977760000, Weidmüller

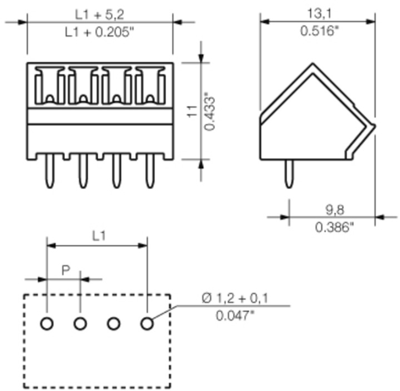

PCB connectors, side entry, THT/THR solder termination, 3.81 mm, no. of poles: 15, 135°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 15 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
