1975800000 | Weidmüller

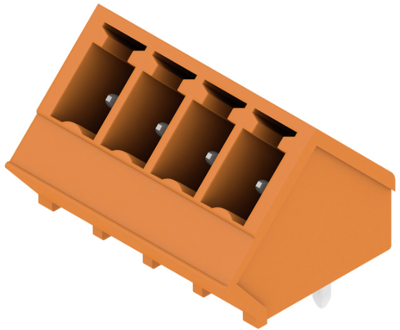

Pin header, 4 pole, pitch 3.81 mm, straight, orange, 1975800000
Order No.: 52P8587
EAN: 4032248684168
MPN:
1975800000
SC 3.81/04/135G 3.2SN OR BX
Unit Price (€ / pc.)
1.4637 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
10 pcs.
1.3447 €
50 pcs.
1.2257 €
100 pcs.
1.1067 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1975800000, Weidmüller
Board Connector, lateral closed, THT solder termination, 3.81 mm, no. of poles: 4, 135°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 17.5 A | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Colour | orange | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
