1975760000 | Weidmüller

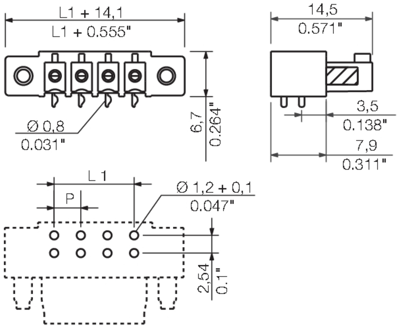

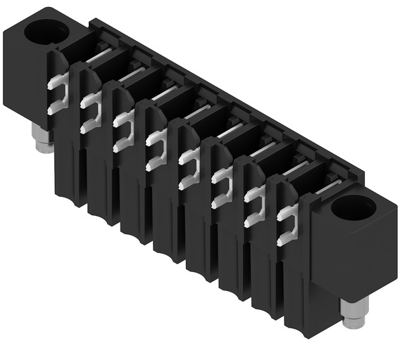

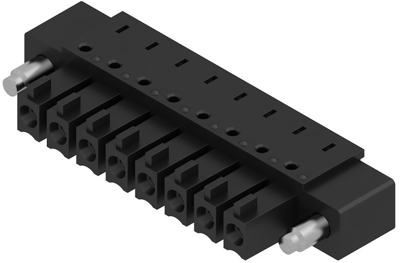

Socket header, 8 pole, pitch 3.81 mm, angled, black, 1975760000
Order No.: 52P8583
EAN: 4032248678396
MPN:
1975760000
BCL-SMT 3.81/08/90F 1.5SN BK BX
Unit Price (€ / pc.)
4.6648 € *
Standard delivery time from the manufacturer is: 12 Weeks
Female connector, 1975760000, Weidmüller
PCB connectors, flange, THT/THR solder termination, 3.81 mm, no. of poles: 8, 90°, 1.5 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 8 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
