1974250000 | Weidmüller

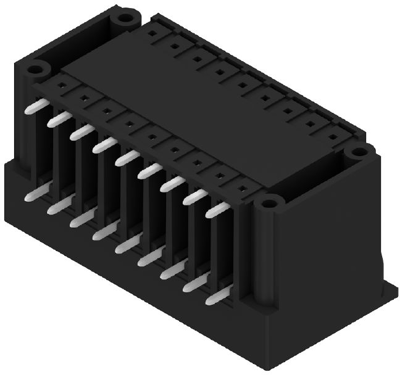

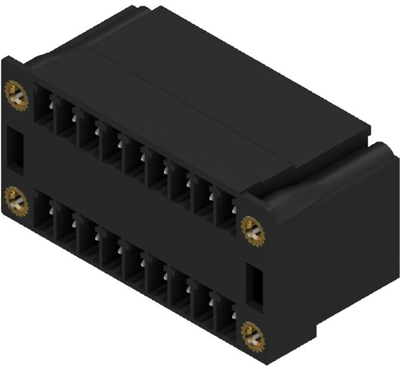

Pin header, 18 pole, pitch 3.81 mm, angled, black, 1974250000
Order No.: 52P8533
EAN: 4032248683765
MPN:
1974250000
SCD-THR 3.81/18/90F 3.2SN BK BX
Unit Price (€ / pc.)
7.8540 € *
Available in 6 Days: 250 pcs. - if ordered today
Male connector, 1974250000, Weidmüller
Printed Circuit Board Connector, Flange, THT/THR Solder Termination, 3.81 mm, No. of Poles: 18, 90°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Orientation | angled | |
| Pin number | 18 pole | |
| Version | pin header | |
| Colour | black | |
| Grid | 3.81 mm | |
| Rated current | 17.5 A | |
| Contact type | pin | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
