1973850000 | Weidmüller

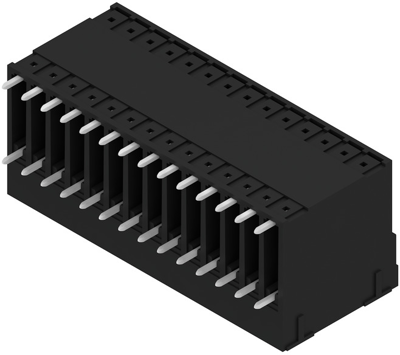

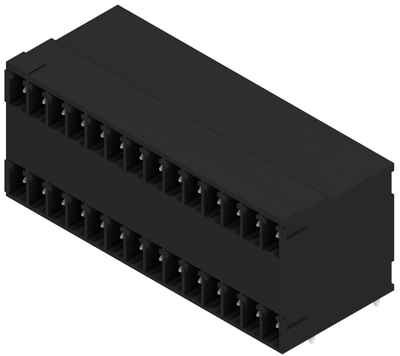

Pin header, 28 pole, pitch 3.81 mm, angled, black, 1973850000
Order No.: 52P8523
EAN: 4032248683369
MPN:
1973850000
SCD-THR 3.81/28/90G 3.2SN BK BX
Unit Price (€ / pc.)
10.8528 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1973850000, Weidmüller

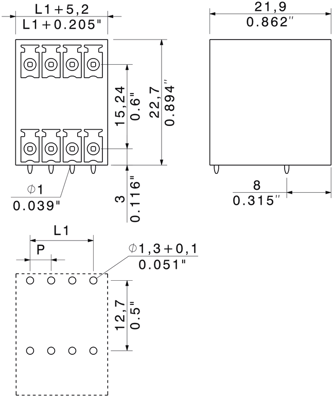

Printed Circuit Board Connector, closed sideways, THT/THR solder termination, 3.81 mm, no. of poles: 28, 90°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 28 pole | |
| Grid | 3.81 mm | |
| Connection | PCB connection | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
