1971850000 | Weidmüller

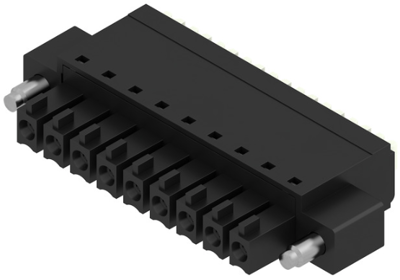

Socket header, 9 pole, pitch 3.81 mm, straight, black, 1971850000
Order No.: 52P8421
EAN: 4032248680764
MPN:
1971850000
BCF 3.81/09/180F SN BK BX
Unit Price (€ / pc.)
5.7001 € *
Standard delivery time from the manufacturer is: 16 Weeks
Female connector, 1971850000, Weidmüller
Printed circuit board connector, socket connector, flange, 3.81 mm, no. of poles: 9, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Additional parts | equipped | |
| Colour | black | |
| Pin number | 9 pole | |
| Number of rows | 2 | |
| Orientation | straight | |
| Grid | 3.81 mm | |
| Rated voltage | 320 V | |
| Connection | spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
