1970710000 | Weidmüller
Pin header, 3 pole, pitch 3.81 mm, straight, black, 1970710000
Order No.: 52P8372
EAN: 4032248680399
MPN:
1970710000
SCZ 3.81/03/180FI SN BK BX
Unit Price (€ / pc.)
3.7485 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3.75 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7485 €
10 pcs.
3.4510 €
50 pcs.
3.1416 €
100 pcs.
2.8322 €
*incl. VAT plus shipping costs
Subject to prior sale

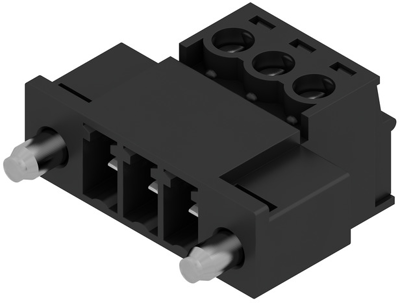

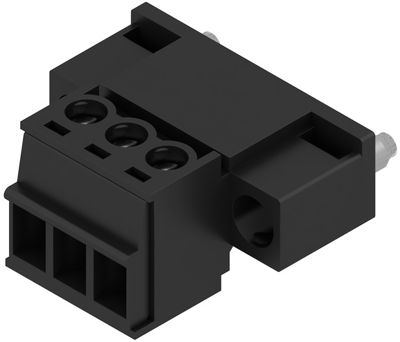

Male connector, 1970710000, Weidmüller
PCB connector, flange inverted, 3.81 mm, no. of poles: 3, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Connection | clamp connection | |
| Number of rows | 1 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Pin number | 3 pole | |
| Grid | 3.81 mm | |
| Colour | black | |
| Rated current | 17.5 A | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
