1970400000 | Weidmüller
Socket header, 6 pole, pitch 3.81 mm, straight, orange, 1970400000
Order No.: 52P8361
EAN: 4032248679959
MPN:
1970400000
BCF 3.81/06/180F SN OR BX
Unit Price (€ / pc.)
3.9151 € *
Standard delivery time from the manufacturer is: 12 Weeks

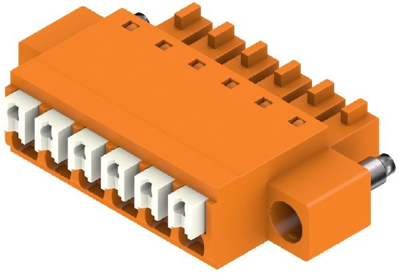

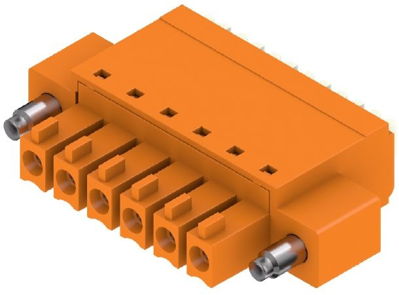

Female connector, 1970400000, Weidmüller
Printed circuit board connectors, female connector, flange, 3.81 mm, no. of poles: 6, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Connection | spring connection | |
| Number of rows | 2 | |
| Colour | orange | |
| Contact type | socket | |
| Additional parts | equipped | |
| Rated current | 17.5 A | |
| Rated voltage | 320 V | |
| Pin number | 6 pole | |
| Orientation | straight | |
| Version | socket header | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
