1969970000 | Weidmüller

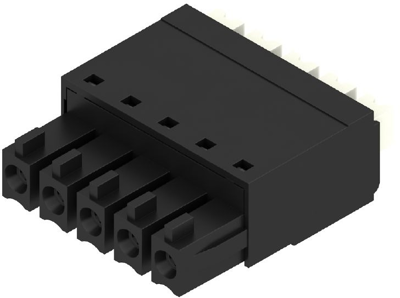

Socket header, 5 pole, pitch 3.81 mm, straight, black, 1969970000
Order No.: 52P8327
EAN: 4032248679553
MPN:
1969970000
BCF 3.81/05/180 SN BK BX
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
10 pcs.
3.9627 €
50 pcs.
3.6057 €
100 pcs.
3.2368 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1969970000, Weidmüller
Printed circuit board connectors, socket connector, side closed, 3.81 mm, no. of poles: 5, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Version | socket header | |
| Colour | black | |
| Grid | 3.81 mm | |
| Rated current | 17.5 A | |
| Contact type | socket | |
| Number of rows | 2 | |
| Connection | spring connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
