1969950000 | Weidmüller

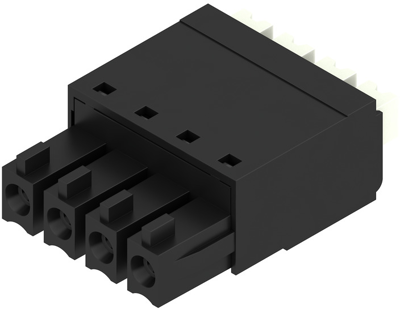

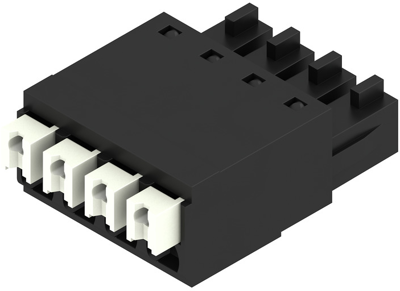

Socket header, 4 pole, pitch 3.81 mm, straight, black, 1969950000
Order No.: 52P8326
EAN: 4032248679546
MPN:
1969950000
BCF 3.81/04/180 SN BK BX
Unit Price (€ / pc.)
3.4391 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.1654 €
50 pcs.
2.8798 €
100 pcs.
2.5823 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1969950000, Weidmüller
Printed circuit board connectors, female connector, side closed, 3.81 mm, no. of poles: 4, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | spring connection | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Version | socket header | |
| Grid | 3.81 mm | |
| Number of rows | 2 | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
