1969890000 | Weidmüller
Socket header, 2 pole, pitch 3.81 mm, straight, black, 1969890000
Order No.: 52P8324
EAN: 4032248679522
MPN:
1969890000
BCF 3.81/02/180 SN BK BX
Unit Price (€ / pc.)
1.7136 € *
Available: 7 pcs.
Next delivery: 20 pcs. on 2025-09-23
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5827 €
50 pcs.
1.4399 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale

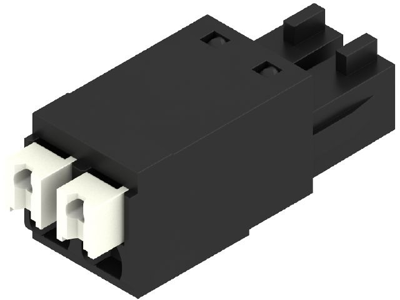

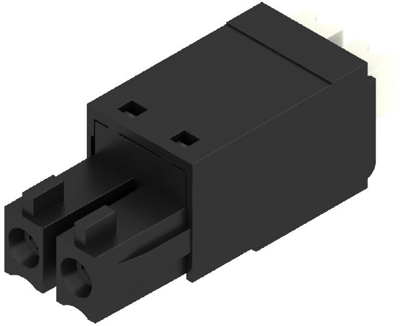

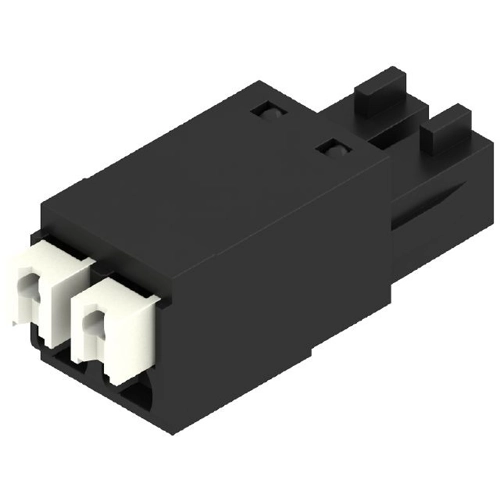

Female connector, 1969890000, Weidmüller
Printed circuit board connector, socket connector, closed at the side, 3.81 mm, no. of poles: 2, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 2 pole | |
| Grid | 3.81 mm | |
| contact surface | tin-plated | |
| Number of rows | 2 | |
| Rated current | 17.5 A | |
| Colour | black | |
| Contact type | socket | |
| Connection | spring connection | |
| Rated voltage | 320 V | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
