1961300000 | Weidmüller

Socket header, 16 pole, pitch 5 mm, angled, orange, 1961300000

Order No.: 50P5340
EAN: 4032248640560
MPN:
1961300000
BLZP 5.00HC/16/270LH SN OR BX

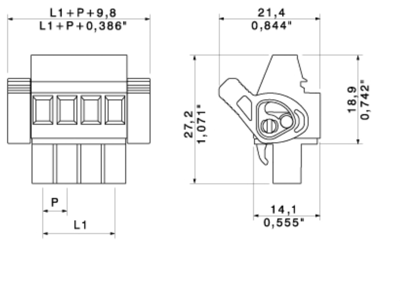

1961300000 Weidmüller PCB Connection Systems Image 1

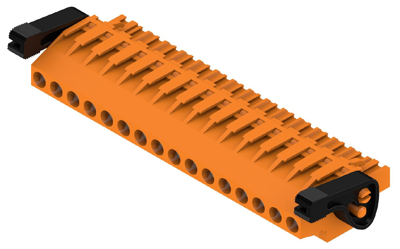

1961300000 Weidmüller PCB Connection Systems Image 2

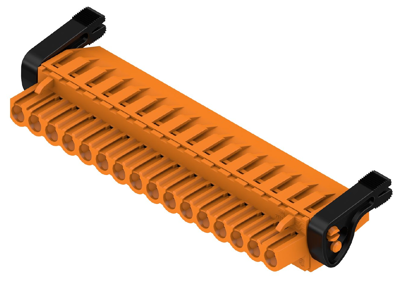

1961300000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
12.1856 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
12.19 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1856 €
10 pcs.
11.3645 €
50 pcs.
10.6386 €
100 pcs.
10.0079 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1961300000, Weidmüller

Female plug with clamping-yoke connection for connecting a wire with a right-angle (90° or 270°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour orange
Connection pull-bar connection
Rated current 23 A
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5 mm
Number of rows 1
Pin number 16 pole
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
