1961050000 | Weidmüller

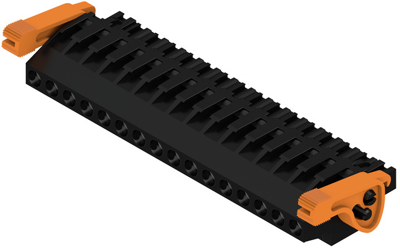

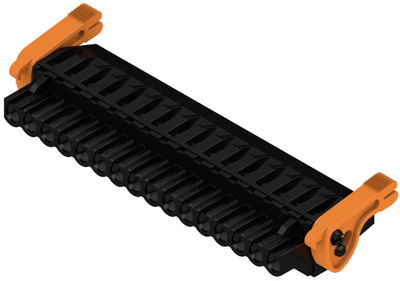

Socket header, 16 pole, pitch 5 mm, angled, black, 1961050000
Order No.: 52P7977
EAN: 4032248640102
MPN:
1961050000
BLZP 5.00HC/16/270LR SN BK BX
Unit Price (€ / pc.)
13.3756 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
13.38 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3756 €
10 pcs.
12.4236 €
50 pcs.
11.3169 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1961050000, Weidmüller
PCB connectors, release latch, 5.00 mm, no. of poles: 16, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5 mm | |
| Pin number | 16 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
