1960420000 | Weidmüller

Socket header, 6 pole, pitch 5 mm, angled, orange, 1960420000

Order No.: 52P7971
EAN: 4032248639281
MPN:
1960420000
BLZP 5.00HC/06/270F SN OR BX

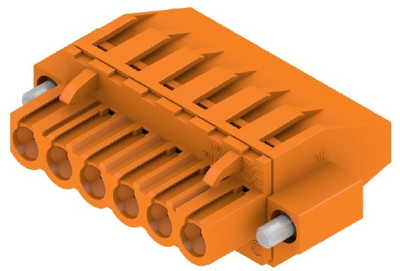

1960420000 Weidmüller PCB Connection Systems Image 1

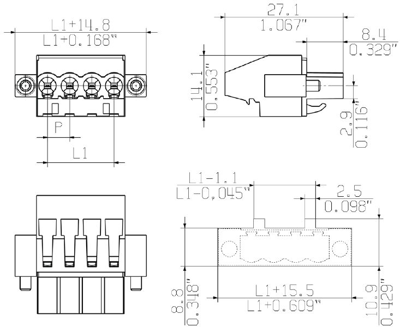

1960420000 Weidmüller PCB Connection Systems Image 2

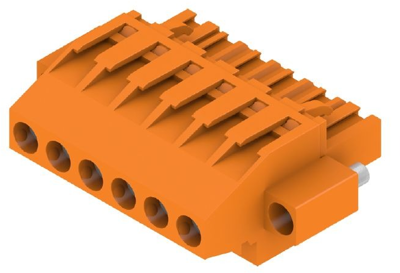

1960420000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Available in 5 Days: 84 pcs. - if ordered today
Total Price:
178.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
80 pcs.
2.2372 €

Female connector, 1960420000, Weidmüller

PCB Connector, Flange, 5.00 mm, No. of Poles: 6, tinned, orange, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Connection screw connection
Colour orange
Additional parts equipped
Pin number 6 pole
Contact type socket
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Version socket header
Rated current 23 A
Number of rows 1
Grid 5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
