1959000000 | Weidmüller

Socket header, 12 pole, pitch 5 mm, angled, black, 1959000000

Order No.: 52P7936
EAN: 4032248637935
MPN:
1959000000
BLZP 5.00HC/12/270 SN BK BX

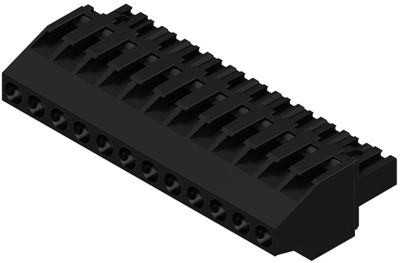

1959000000 Weidmüller PCB Connection Systems Image 1

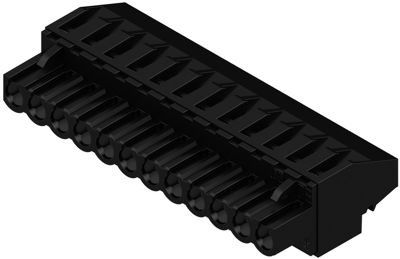

1959000000 Weidmüller PCB Connection Systems Image 2

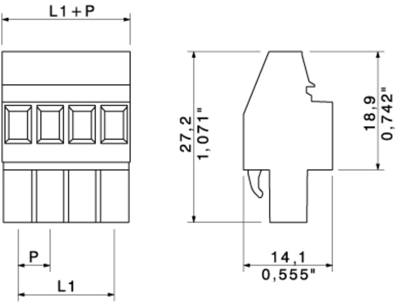

1959000000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.2471 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
7.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.2471 €

Female connector, 1959000000, Weidmüller

Printed Circuit Board Connector, closed sideways, 5.00 mm, no. of poles: 12, tinned, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Connection screw connection
Colour black
Additional parts equipped
Pin number 12 pole
Contact type socket
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Version socket header
Rated current 23 A
Number of rows 1
Grid 5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
