1958840000 | Weidmüller

Socket header, 5 pole, pitch 5 mm, angled, orange, 1958840000

Order No.: 52P7930
EAN: 4032248637676
MPN:
1958840000
BLZP 5.00HC/05/270 SN OR BX

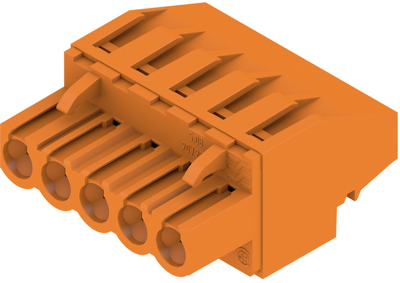

1958840000 Weidmüller PCB Connection Systems Image 1

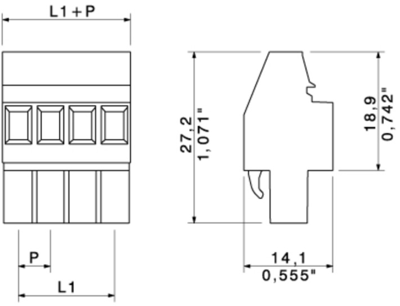

1958840000 Weidmüller PCB Connection Systems Image 2

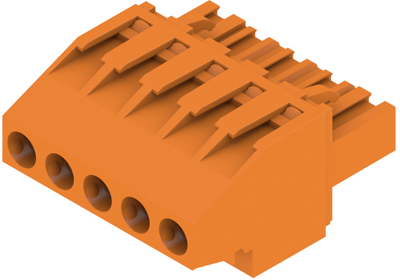

1958840000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.0464 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
3.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.0464 €

Female connector, 1958840000, Weidmüller

Printed circuit board connector, side closed, 5.00 mm, no. of poles: 5, tin-plated, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Connection screw connection
Colour orange
Additional parts equipped
Pin number 5 pole
Contact type socket
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Version socket header
Rated current 23 A
Number of rows 1
Grid 5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
